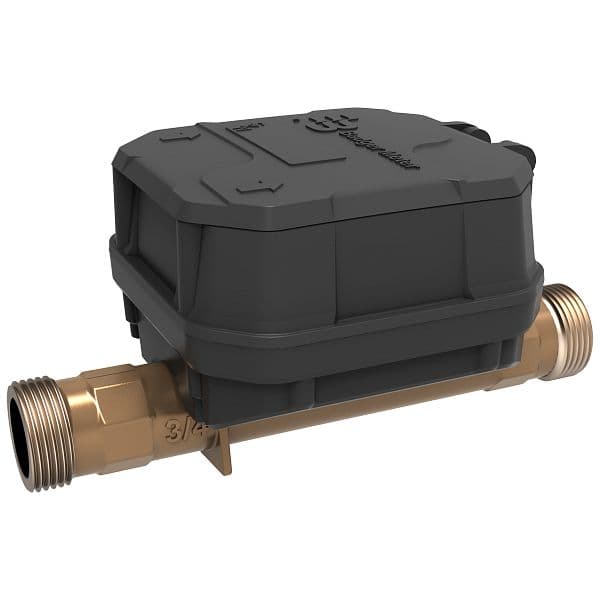

E-Series G2® Ultrasonic water meters use solid-state technology, ideal for residential and light commercial smart water applications. These meters have compact, encapsulated, weatherproof and UV-resistant housing and feature an easy-to-read, nine-digit LCD display.

Specifications:

• Size

  5/8...2 in.

• Temperature Range

  34...140° F

• Flow Range

  5/8 in. & 5/8 x 3/4in.: 0.04...30 gpm
  3/4 in.: 0.04...35 gpm
  1 in.: 0.16...62 gpm
  1-1/2 in.: 0.40...100 gpm
  2 in.: 0.50...160 gpm

• Pressure Range

  Up to 175 PSI

• Power Supply

  3.6-volt lithium thionyl chloride battery (20-year battery life)

• Accuracy

  ±1.5% long-term sustained accuracy over the normal flow range
  ±3.0% from the extended low flow range to the minimum flow value
